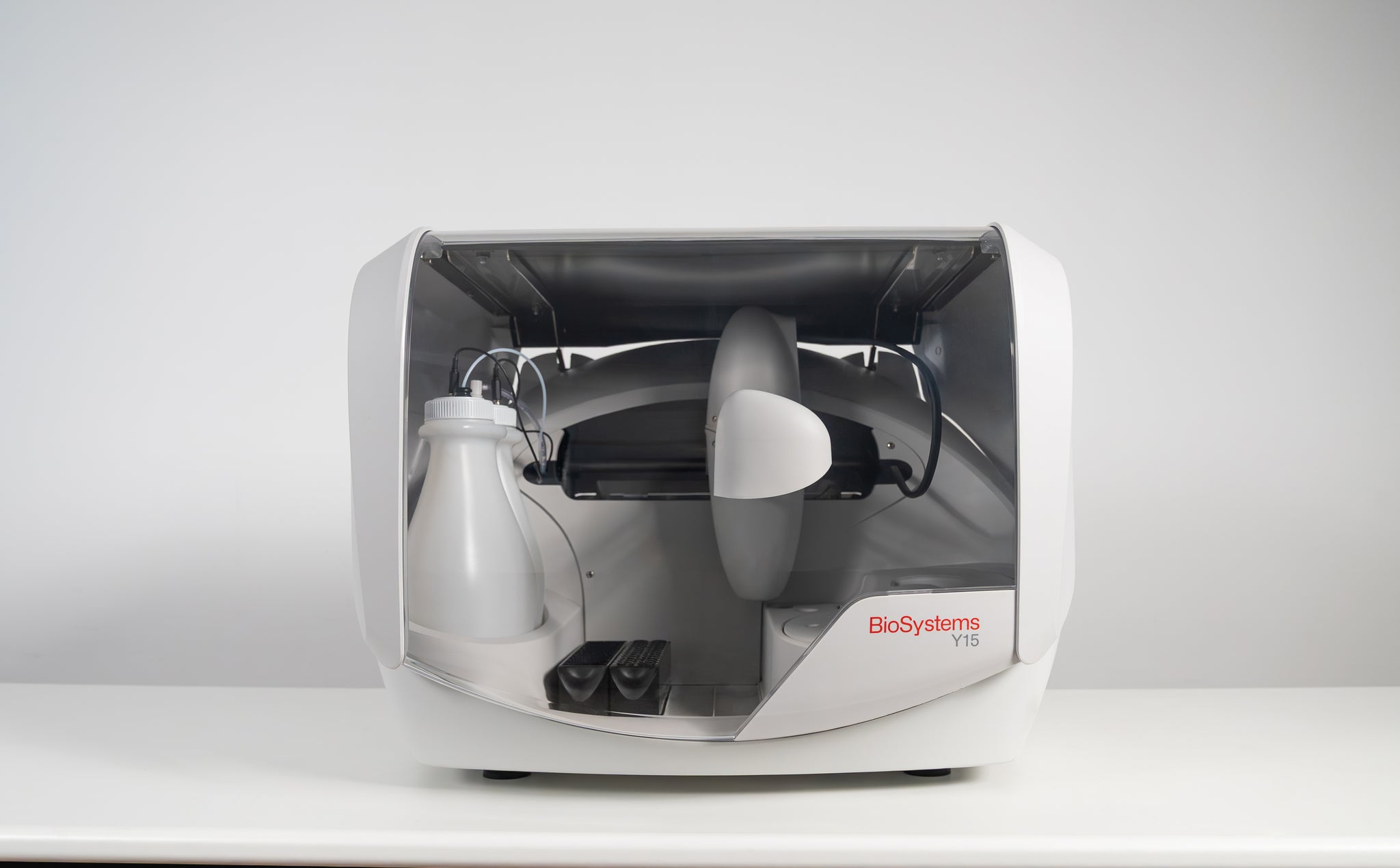

Y15 Automatic Analyzer
Y15 Automatic Analyzer
Y15 Automatic Analyzer
Y15 Automatic Analyzer
Y15 Automatic Analyzer

Y15 Automatic Analyzer

83106

Test rate 150 tests/hour (75 results/hour)

Number of rack positions — Y15 4 (samples and/or reagents)

Number of rack positions — Y15c 2 (samples and/or reagents)

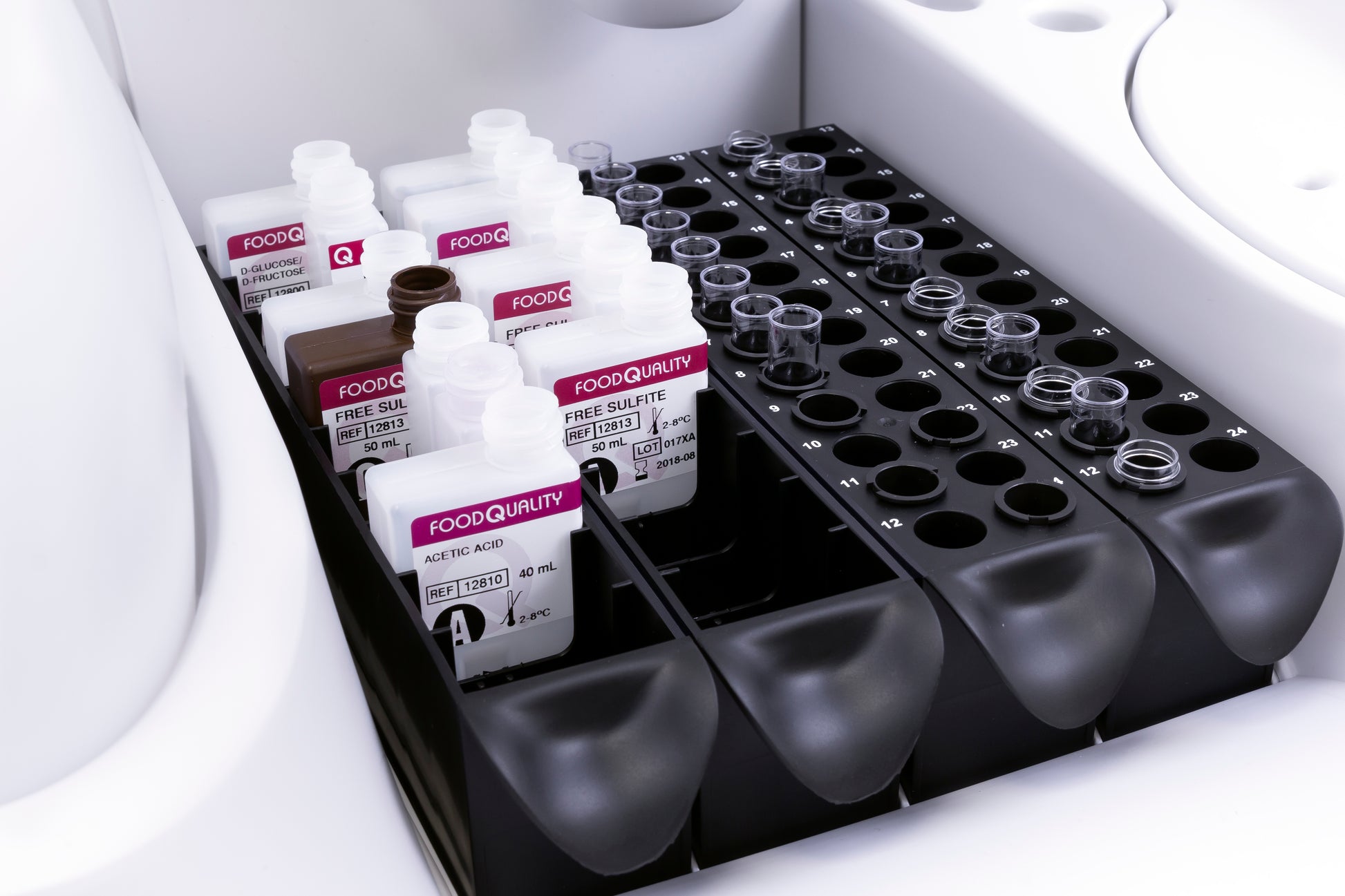

Number of samples per rack 24 (multiuse racks)

Number of samples per rack 10 (20 and 50 mL bottles)

Number of cooled reagents — Y15c 10 (20 mL bottles) and 10 (50 mL bottles)

Maximum number of samples/reagents — Y15 72 samples / 30 reagents

Maximum number of samples/reagents — Y15c 48 samples / 30 reagents

Sample tubes ø13 mm, ø15

mm (maximum height 100 mm)

Standard vial ø13 mm

Programmable reagent volume — A / B 10 μL - 600 μL / 10 μL - 200 μL

Programmable sample volume 2 μL - 80 μL

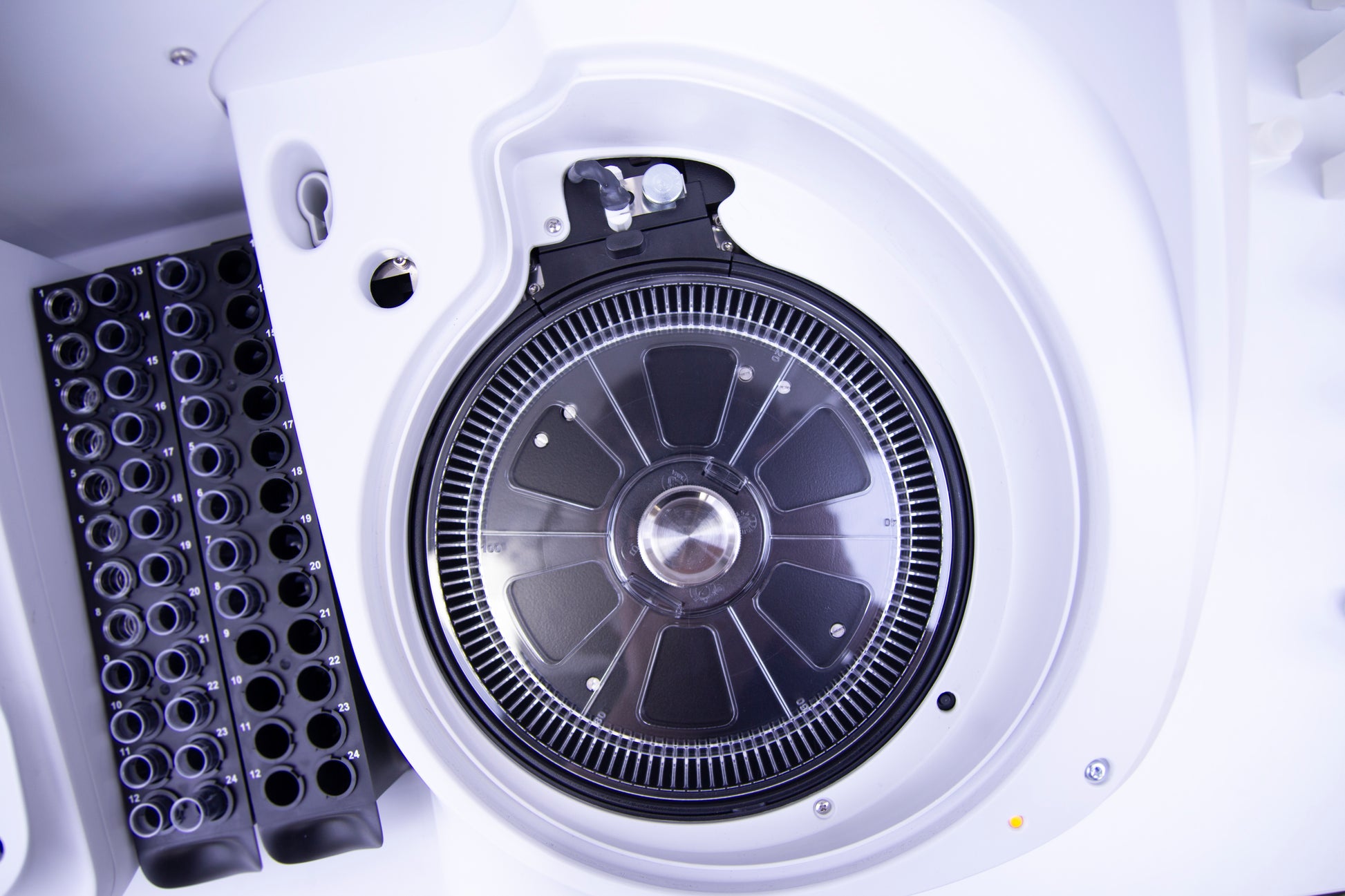

Removable methacrylate rotor

Number of wells in the rotor 120

Automatic pre- and post-dilutions

Permissible reaction volumes 180 μL - 800 μL

Measurement range from -0,05 A to 3,6 A

Filter drum configuration 340, 405, 420, 520, 560,600, 620, 635, 670 (nm)

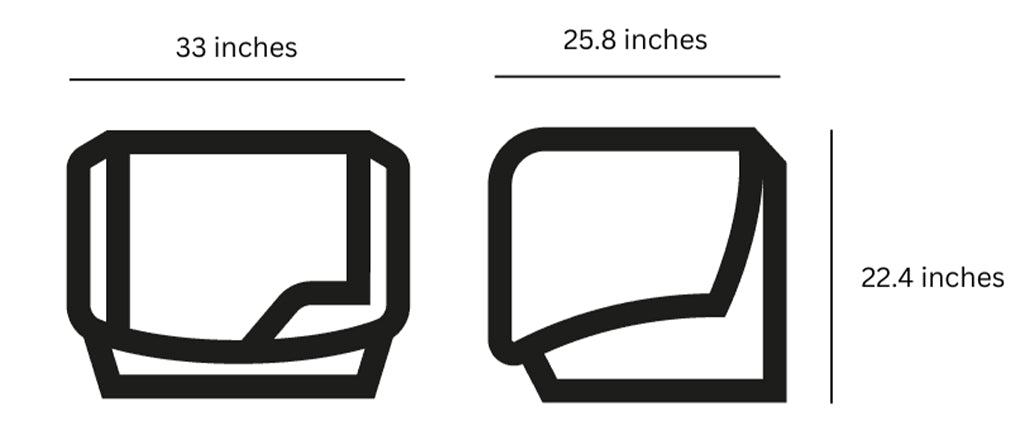

Dimensions 840 x 670 x 615 (mm) (length x deep x height)

Weight 45 kg
